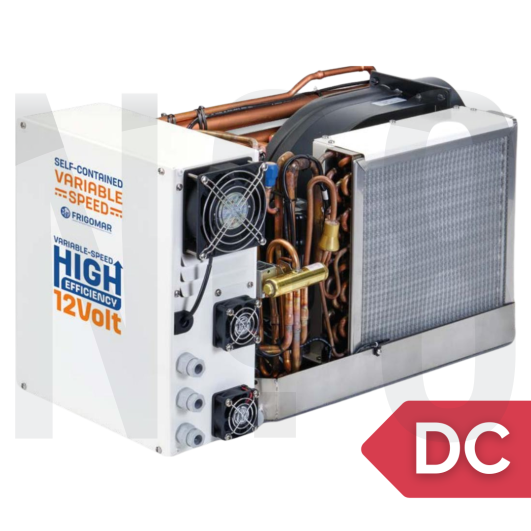

Frigomar SELF CONTAINED UNIT 10000BTU 12VDC HIGH EFFICIENCY
%5
287.599,20 TL
302.736,00 TL
| SCU10VFDHE-12 | SCU10VFDHE-24 | SCU10VFDHE-48 | |
|---|---|---|---|
| Width | 433 mm | ||
| Height | 282 mm | ||
| Depth | 260 mm | ||
| Weight (electrical panel included) |
24,5 kg | ||
| Electrical panel dimensions | 275 x 321,5 x 126 mm | ||
| Voltage / phase / frequency | 12 V | 24 V | 48 V |
| Maximum cooling/heating capacity | 10.000 BTU/h | ||
| Maximum input power | 690 W | 640 W | 640 W |
| Maximum current | 56,7 A | 26,7 A | 13,3 A |
| Cooling capacity ECO mode* | 3.000 BTU/h | ||
| Input power ECO mode* | 155 W | ||
| Max seawater flow-pressure drop** | 1,0 m3/h - 3,4 m H2O | ||
| Min seawater flow-pressure drop** | 0,8 m3/h - 2,2 m H2O | ||
| Air exit duct diameter | 120 mm | ||
| R410A refrigerant gas | 0,350 kg | 0,390 kg | 0,390 kg |
* minimum fan speed
** considering the seawater condenser only
