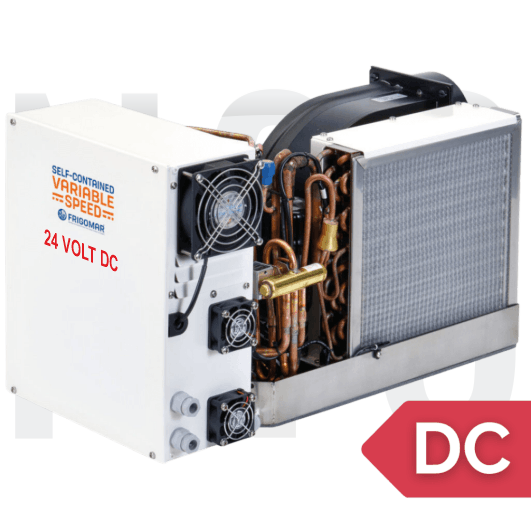

Frigomar SELF CONTAINED UNIT 16000BTU 24VDC HIGH EFFICIENCY 24 volt Klima
%5
415.960,92 TL
437.853,60 TL
| SCU16VFDHE-24 | SCU16VFDHE-48 | |
|---|---|---|
| Width | 500 mm | |
| Height | 336 mm | |
| Depth | 290 mm | |
| Weight (electrical panel included) |
29,5 kg | |
| Electrical panel dimensions | 275 x 321,5 x 126 mm | |
| Voltage / phase / frequency | 24 V | 48 V |
| Maximum cooling/heating capacity | 16.000 BTU/h | |
| Maximum input power | 970 W | 970 W |
| Maximum current | 40 A | 20 A |
| Cooling capacity ECO mode* | 3.900 BTU/h | |
| Input power ECO mode* | 230 W | |
| Max seawater flow-pressure drop** | 1,4 m3/h - 6,2 m H2O | |
| Min seawater flow-pressure drop** | 1,3 m3/h - 5,7 m H2O | |
| Air exit duct diameter | 150 mm | |
| R410A refrigerant gas | 0,500 kg | |
* minimum fan speed
** considering the seawater condenser only
