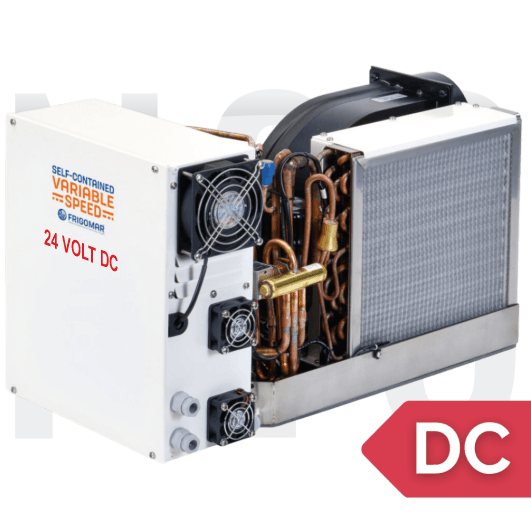

Frigomar SELF CONTAINED UNIT 7000BTU 24VDC HIGH EFFICIENCY 24 volt Klima
%5
352.155,12 TL
370.689,60 TL
| SCU07VFDHE-12 | SCU07VFDHE-24 | SCU07VFDHE-48 | |
|---|---|---|---|
| Width | 433 mm | ||
| Height | 282 mm | ||
| Depth | 260 mm | ||
| Weight (electrical panel included) |
24,5 kg | ||
| Electrical panel dimensions | 275 x 321,5 x 126 mm | ||
| Voltage / phase / frequency | 12 V | 24 V | 48 V |
| Maximum cooling/heating capacity | 7.000 BTU/h | ||
| Maximum input power | 470 W | 440 W | 440 W |
| Maximum current | 39,2 A | 18,3 A | 9,2 A |
| Cooling capacity ECO mode* | 3.000 BTU/h | ||
| Input power ECO mode* | 155 W | ||
| Max seawater flow-pressure drop** | 1,0 m3/h - 3,4 m H2O | ||
| Min seawater flow-pressure drop** | 0,8 m3/h - 2,2 m H2O | ||
| Air exit duct diameter | 120 mm | ||
| R410A refrigerant gas | 0,350 kg | 0,390 kg | 0,390 kg |
* minimum fan speed
** considering the seawater condenser only
